2025 Wholesale Tungsten Carbide Die for Making Screws Bolts with VA80 ST7 ST6 KG5 KG6 Materials and +/-0.01 Tolerance

Name: 2025 Wholesale Tungsten Carbide Die for Making Screws Bolts with VA80 ST7 ST6 KG5 KG6 Materials and 001 Tolerance
Brand: Henghui, Henghui
Price: 1 USD

Wholesale 2025 Wholesale Tungsten Carbide Die for Making Screws Bolts with VA80 ST7 ST6 KG5 KG6 Materials and +/-0.01 Tolerance from china suppliers

Place of Origin : Chongqing, China

Brand Name : Henghui, Henghui

Model Number : Customized

MOQ : 1

Shaping Mode : Forging Mould

Product Material : Steel, Steel and carbide

Carbide Material : VA80, ST7, ST6, KG5, KG6

Tolerance : +/-0.01

Case Material : H13(SKD61) HRC46-48

Surface Treatment : TiN / TiAlN

Co Content : 6.50% - 24%

Grain Size : 2~3 μm - 6~9 μm

Density : 13.22 - 14.90 g/cm²

Hardness : 82.5 - 90.5 HRA

TRS : 240 - 340 Kgf/mm²

Impact Strength : 0.28 - 0.90 Kgf/m-cm²

Chemical Composition : C, Si, Mn, P, S, Cr, Mo, V, W, Cu, Ni

Concentricity : 0.01mm

Standard Deviation : 0.005mm

Contact Now

Products Description

2025 Wholesale Tungsten Carbide Die for Making Screws Bolts with VA80 ST7 ST6 KG5 KG6 Materials and +/-0.01 Tolerance

Insert Material:

We can suggest different carbide material according to different usage.

	Item	Co	Grain Size	Density	Hardness	TRS	Impact Strength	Application
Mediun-Grained		Co%	μm	g/cm²	HRA	Kgf/mm²	Kgf/m-cm²
		KG2	6.50%	2~3	14.90	90.5	320	0.28	Drawing die
		KG3	9%	2~3	14.61	89.3	340	0.52	Extrusion die
		KG5	12%	2~3	14.31	88.3	340	0.58	Extrusion die
		KG6	14%	2~3	14.12	87.3	320	0.65	Extrusion die
Coarse-Grained	ST6	15%	3~6	13.80	86.0	270	0.78	Stainless steel
		ST7	20%	2~6	13.40	85.3	270	0.80	Stainless steel
		EA65	18%	2~6	13.73	85.0	300	0.80	Carbon steel screw/cutting die
		VA80	20%	3~6	13.58	84.0	280	0.85	Impact resistance
		VA90	22%	6~9	13.39	82.5	240	0.90	Impact resistance
		EA90	24%	2~6	13.22	82.8	270	0.90	Impact resistance

Case Material:

Our main case material is H13(SKD61) HRC46-48

SKD61(H13）
Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	0.39	1.15	0.44	0.021	0.007	5.12	1.3	0.94	0.06
	Cu	Ni
	0.05	0.06

Surface Treatment:

TiN / TiAlN

Process

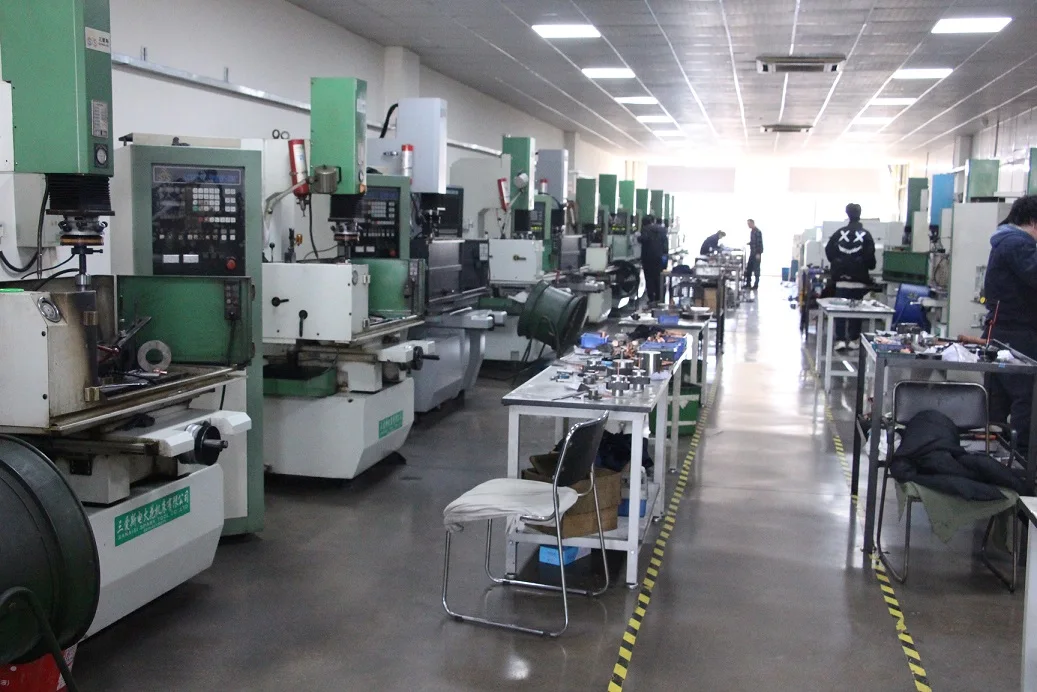

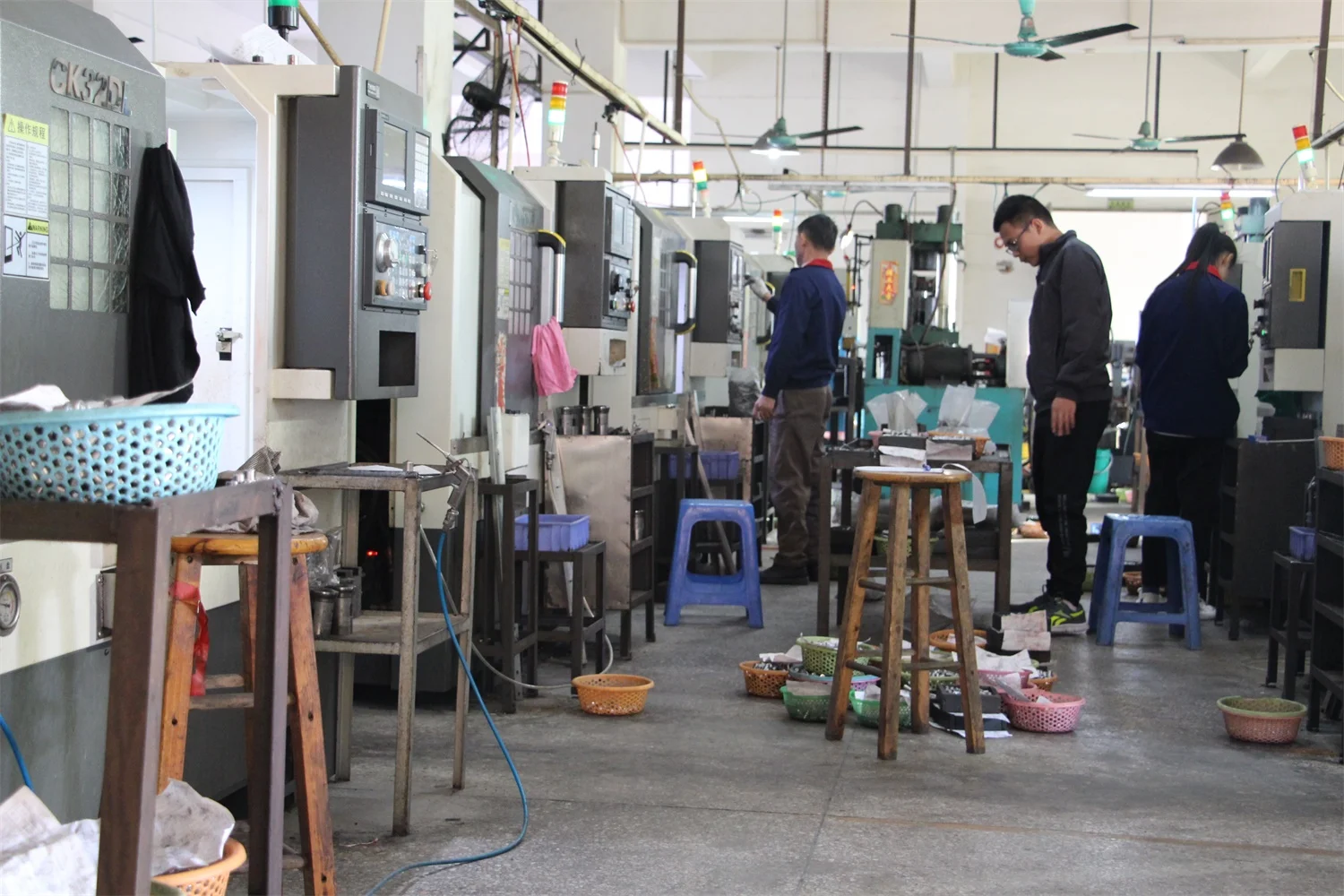

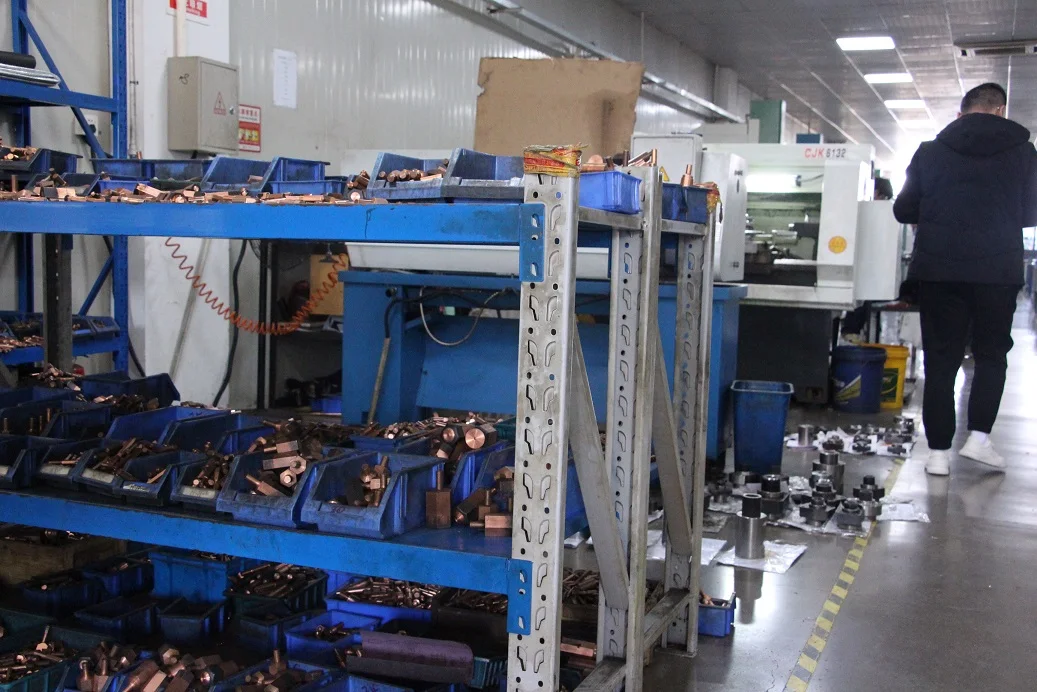

Factory

About Us

Chongqing Henghui Precision Mold Co., Ltd. has CNC lathes, CNC machining centers, CNC Cylindrical Grinding Machine, CNC EDM machine, CNC Cutting Machine, Milling Andam Drilling Machine ,etc.We also have various types testing equipment,such as Rockwell Hardness Tester, Projector ,3D Image Measuring Instrument, etc. Henghui using high-quality tungsten carbide material and professional vacuum heat treatment.We design,manufacturing and supply high-quality precision molds for customers who engaged in cold heading and hot upsetting industries.About our molds , the relative standard deviation can be controlled within 0.005mm, concentricity can be controlled within 0.01mm. Strict accordance with ISO9001:2015 quality management system requirements of the operation,can ensure provide timely and high-quality service for our customers.Our products has exported to Southeast Asia,Europe and the United States ."Customer first, quality first, technology first, dedicated service" is our consistent operating principles.Warmly welcome to negotiate business with us.

Exhibition

Exhibition, German Fastener Exhibition, Indian Fastener exhibition and so on. We are committed to participating in various fastener screw exhibitions, and we have gained many new friends in the exhibitions. At the same time, we will visit our new and old customers offline. In each exhibition, we prepared various samples carefully and waited for the exhibition customers, who were satisfied with our products no matter in terms of design, price or quality.

Inspection equipment

Packing and Delivering

Packaging Details:Carton Box; Export Standard Package, Or As Client's Requirement.

Delivery Detail:According To The Quantity Of The Order, About 12-45 Days.

FAQ

Q1: How can I get a quotation from your company?
A1: Contact us.In order to quote you as soon as possible, we need the following information: drawings, Material , Quantity
,Surface treatment.

Q2: What is our lead time?
A2: This will be based on the number of products you customize and the country you are in.

Q3: What is your minimum order quantity (MOQ)?

A: Our MOQ varies depending on the product. Please contact our sales team for detailed information.

Q4: What payment methods do you accept?
A: We accept various payment methods, including wire transfer (T/T), letter of credit (L/C), and PayPal.

Q5: What is your after-sales service like?
A: We provide comprehensive after-sales service, including technical support, product repair, and replacement.

Q6: How can I get your product catalog and quotation?
A: Please contact our sales team through our official website or email, and we will send you the product catalog and quotation as soon as possible.
